V117-3.45 MW®

4 MW brochure

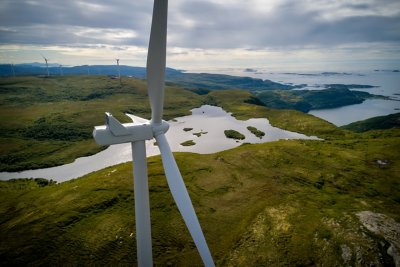

The V117-3.45 MW® is a solid choice for medium and high wind sites with high turbulence.

V117-3.45 MW® at a glance

On high wind-sites the V105-3.45 MW™, V112-3.45 MW® and V117-3.45 MW® are excellent turbine choices. A combination of the three variants can optimise your site layout and improve your production significantly.

Due to the similar electrical properties, sound emissions and nacelle design, it is easy to mix and match the turbines from the 4 MW platform to maximise production on heavily constrained sites.

Options
available for the
V117-3.45 MW™

  • High Wind Operation
  • Power Optimised Mode
  • Condition Monitoring System
  • Service Personnel Lift
  • Vestas Ice Detection
  • Vestas De-Icing
  • Low Temperature Operation to - 30°C
Learn more about the available options and solutions
  • Fire Suppression
  • Vestas Shadow Flicker Control System
  • Vestas Bat Protection System
  • Nacelle Hatch for Air Inlet
  • Aviation Lights
  • Aviation Markings on the Blades
  • Vestas InteliLight™
  • Vestas SiteLCA

Technical specifications

POWER REGULATION OPERATIONAL DATA
Pitch regulated with variable speed
Rated power
3,450kW
Cut-in wind speed
3m/s
Cut-out wind speed
25m/s
Re cut-in wind speed
23m/s
Wind class
IEC IB/IEC IIA
Standard operating temperature range
from -20°C* to +45°C with de-rating above 30°C
SOUND POWER
(Noise modes dependent on site and country)
ROTOR
Rotor diameter
117m
Swept area
10,751m2
Aerodynamic brake
full blade feathering with 3 pitch cylinders
NACELLE DIMENSIONS
Height for transport
3.4 m
Height installed (incl. CoolerTop®)
6.9 m
Length
12.8 m
Width
4.2 m
ELECTRICAL
Frequency
50/60 Hz
Converter
full scale
GEARBOX
Type
two planetary stages and one helical stage
TOWER
Hub heights
80 m (IEC IB), 91.5 m (IEC IB) and 116.5 m (IEC IB/IEC IIA/DIBt S)
HUB DIMENSIONS
Max. transport height
3.8m
Max. transport width
3.8m
Max. transport length
5.5m
BLADE DIMENSIONS
Length
57.2m
Max. chord
4m
Max. weight per unit for transportation
70 metric tonnes
SUSTAINABILITY METRICS
Carbon Footprint
5.1 g CO2e/kWh
Return on energy break-even
5.2 months
Lifetime return on energy
46 times
Recyclability rate
85%
Configuration: 91.5m hub height and wind class IECIB. Depending on site-specific conditions. Metrics are based on an externally reviewed Life Cycle Assessment available on vestas.com

4 MW

The Vestas 4 MW platform sets new standards for onshore wind performance within regimes ranging from very strong wind and typhoon conditions to low wind.

IEC IB/IEC IIA

It is vital finding the right turbine for your wind site. The V117-3.45 MW™ IEC IB/IEC IIA is designed for medium- and high-wind sites.

+74 GW

The performance and versatility of the 4 MW platform has been proven with more than 74 GW installed in 59 countries since 2010.
